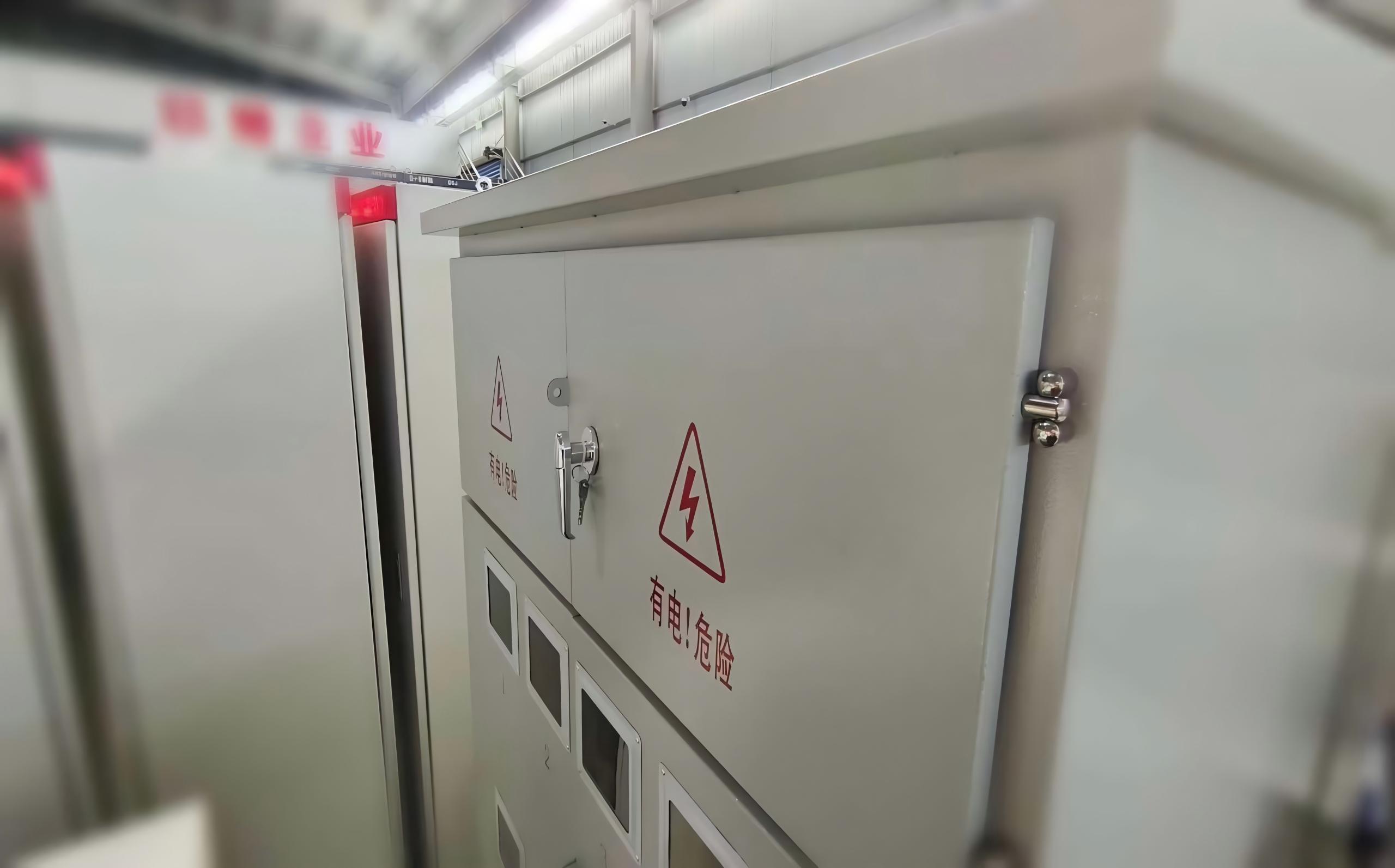

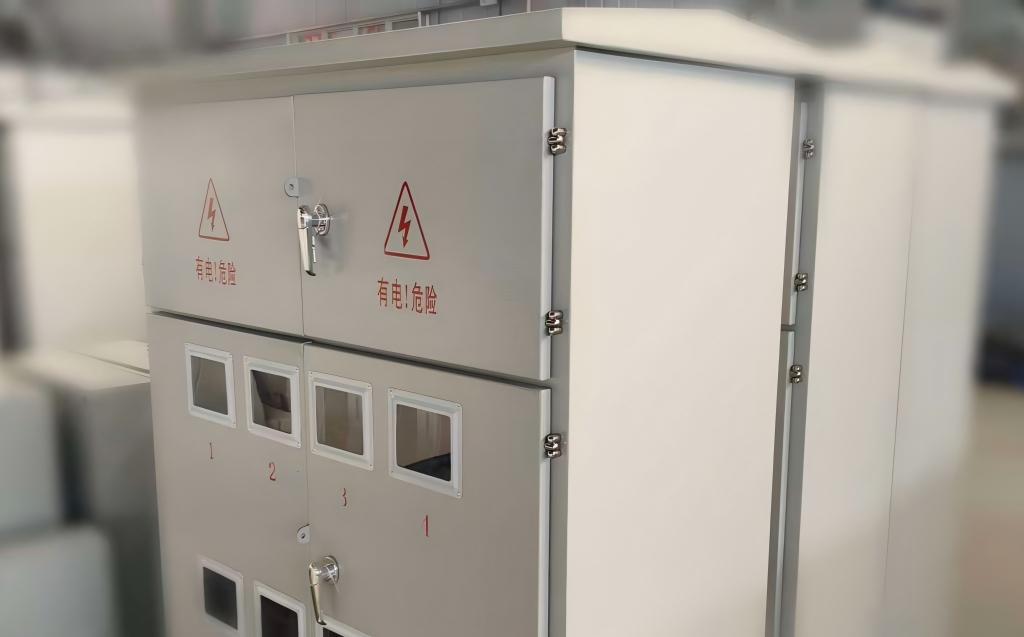

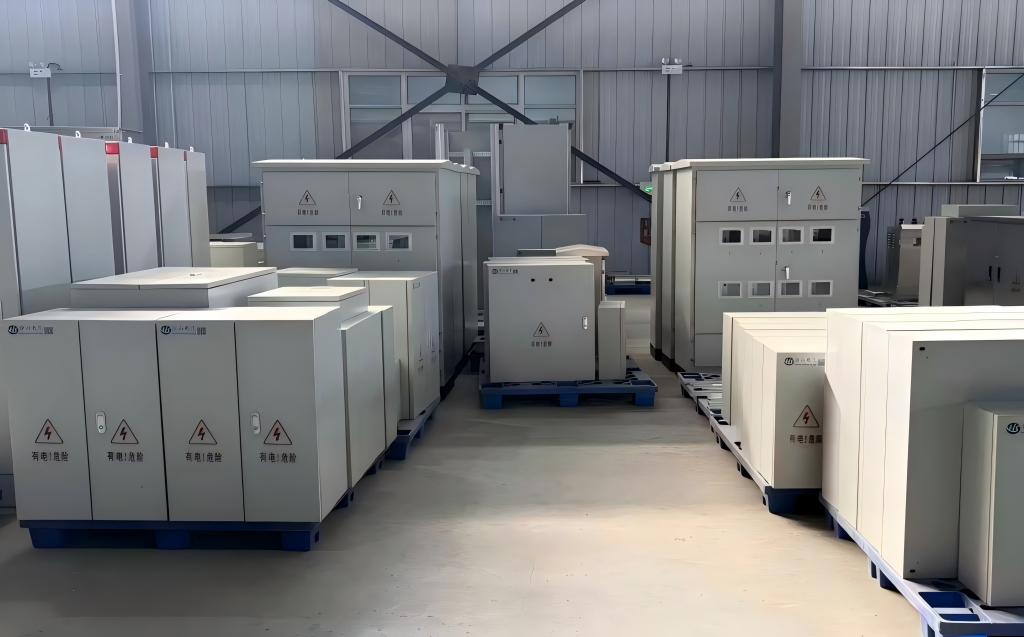

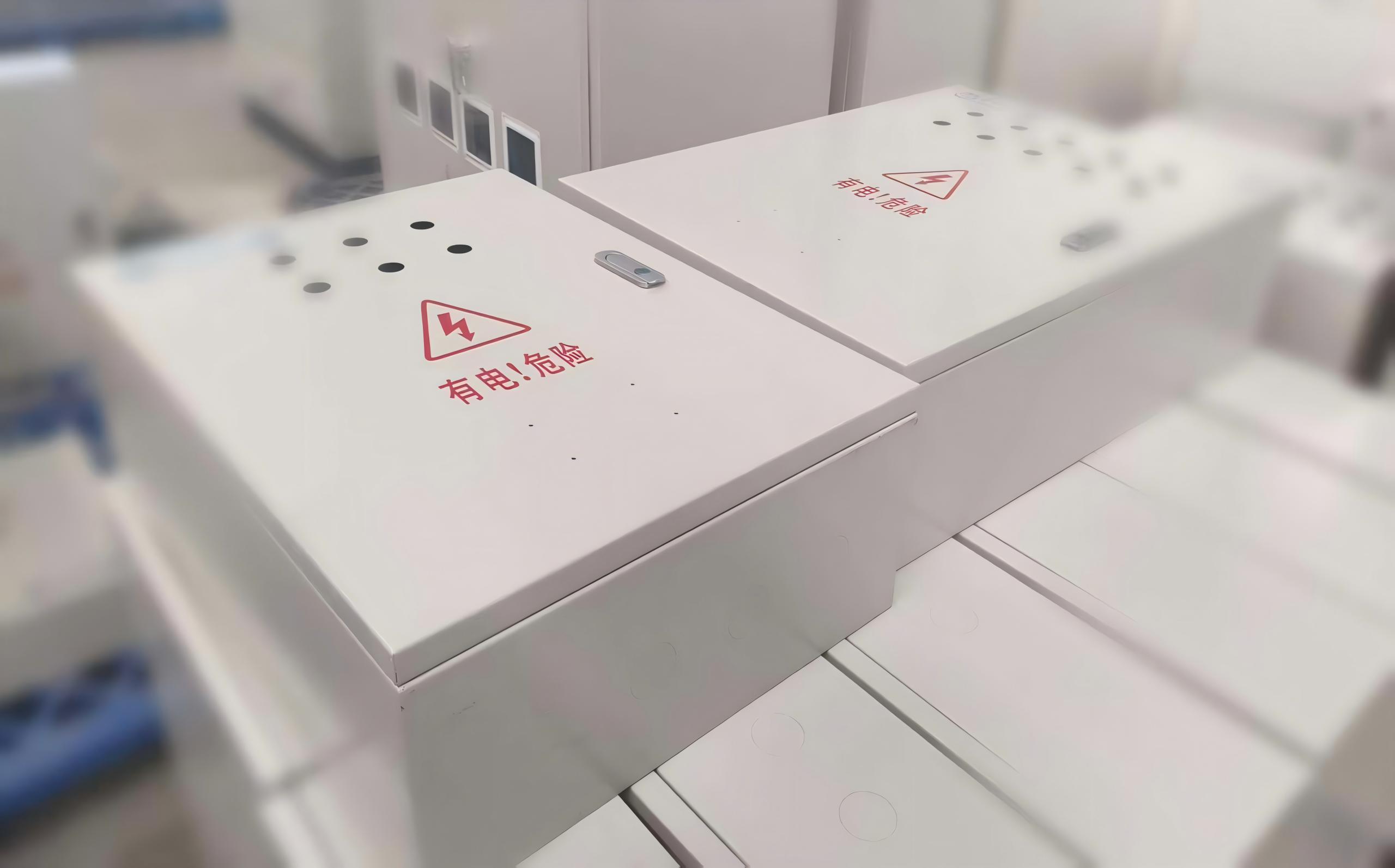

The PZ type distribution box consists of a cabinet, molded-case circuit breakers, miniature circuit breakers, residual current circuit breakers, electricity meters, PVC insulated wires, copper busbars, neutral busbars, protective earth busbars, insulators, and electricity meter connectors. The cabinet is constructed from cold-rolled steel sheet, bent and partially welded.
Distribution boxes are widely used devices in low-voltage power systems, designed for power distribution and control. Suitable for various building, industrial, and commercial environments, they enhance the reliability and safety of power systems. The product features a compact design for easy installation, a well-organized internal structure for convenient maintenance, and meets the electrical needs of diverse users.Both inlet and outlet units are equipped with operating panel covers. These covers shield live parts, providing IP20C protection, while the enclosure protection rating is IP30. The cabinet is coated with epoxy powder electrostatic spraying.
● Compact Structure. Modular design ensures a compact size and easy installation, saving space. The well-organized internal structure facilitates cable connection and maintenance, reducing construction time and costs.
● High Safety. Equipped with high-quality circuit breakers and protective devices to prevent overload and short circuits, ensuring safe operation. A high protection rating effectively prevents dust and water ingress, making it suitable for various harsh environments.
● Superior Materials. Made of high-quality cold-rolled steel with an electrostatic powder coating, offering excellent corrosion resistance and extended service life. All electrical components are from well-known brands, ensuring long-term stable operation and reducing maintenance frequency.
● Installation Location: Indoor or outdoor.
● Seismic Intensity: Not exceeding 8 degrees Celsius.
● Ambient Temperature: Not exceeding +40°C, not lower than -25°C.
● Relative Humidity: Average daily humidity not exceeding 95%, average monthly humidity not exceeding 90%.
● Installation Location: Free from fire, explosion hazards, severe pollution, chemical corrosion, and severe vibration.
| Content | Unit | Value | |
| Rated insulation voltage | V | 500 | |
| Rated operating voltage | V | 400 380 230 220 | |
| Rated frequency | HZ | 50(60) | |
| Rated current rating | A | 250 225 200 180 160 140 125 100 80 63 50 40 32 25 20 16 |
|
| Main bus rated current | A | 250 | |
| Rated current | short-time withstand | KA | 4 |
| peak withstand | KA | 6 | |
| Main switch segmentation capability | KA | 65 | |
| Protection degree | shell:IP30 Operation panel:IP20C | ||
