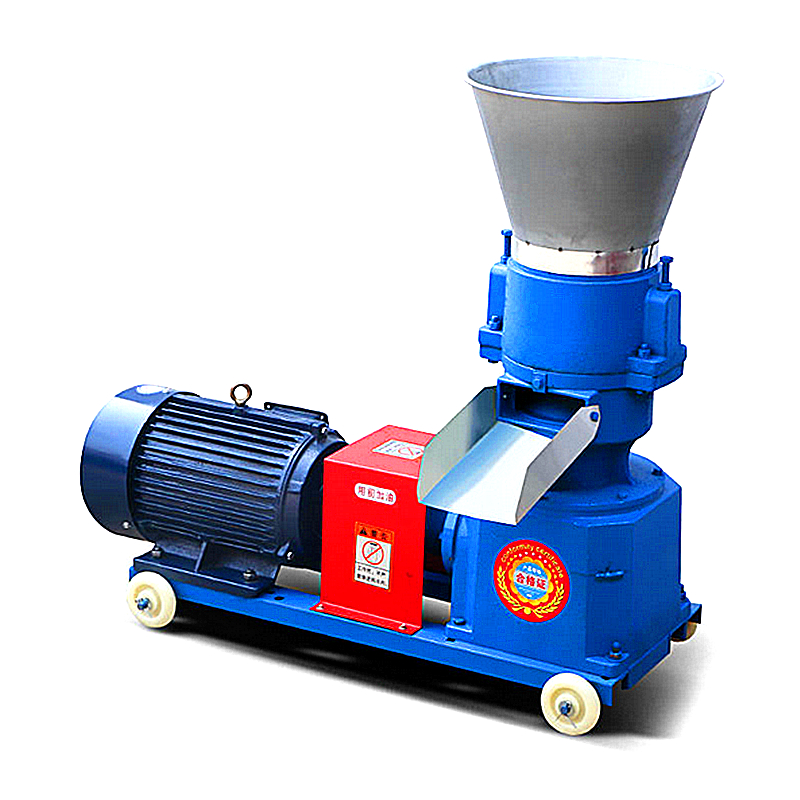

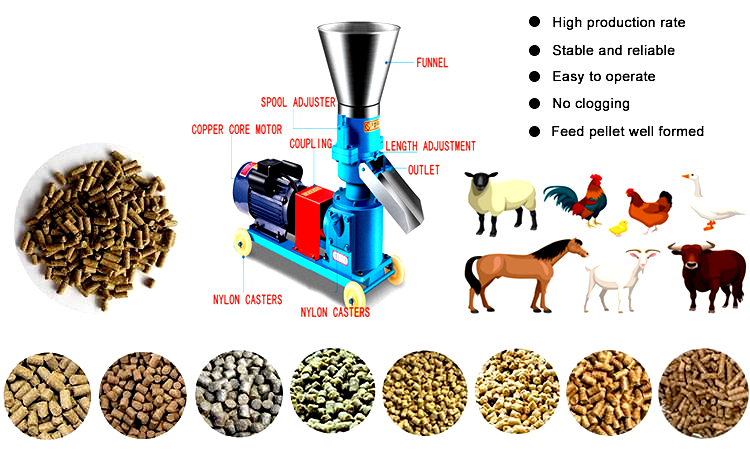

Feed pellet machine can compress crushed materials of corn, soybean meal, straw, grass, and rice husks to pellet directly. It is widely used in large, medium and small aquaculture and poultry farms.
Feed pellet machine specifications:
1.Compact structure feed pellet machine.
2.energy saving feed pellet machine.
3.less investment feed pellet machine.
4.easy operation and maintenance feed pellet machine.
Working principle:
The machine can compress powder size raw material into pellet directly. There is no need to add water during processing, the temperature will reach 70 ℃ -80 ℃ automatically, which can make starch gelatinized protein coagulate and denature.
Finished pellets are deeply ripened inside, the surface is smooth, hard, and the length can be adjusted. The pellets are not easy to mold and can be stored for a long time. It is ideal equipment for aquaculture and poultry farm breeding.

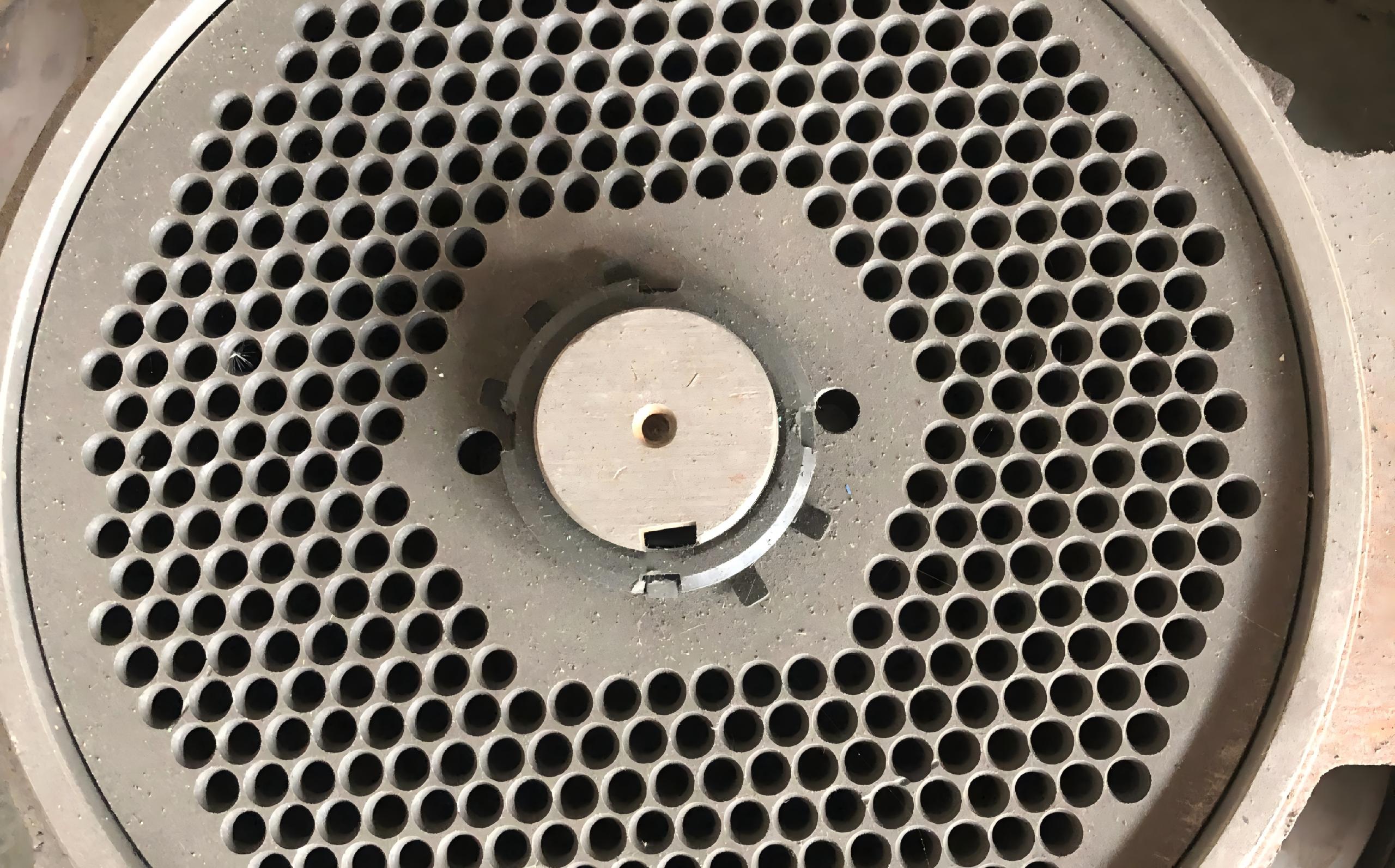

Die diameter: 120mm
Capacity: 60-100kg/h
Motor: 2 or 3 phase 3 kw Y100-41400R/M
Driving method: gear driving, bearing driving.
Die rotating speed: 366r/m
Pellet size: 2mm-12mm
Machine weight: 88KG-93KG( After packing with wooden case)
Die diameter: 149mm
Machine capacity: 150-200kg/h
Motor: 3 phase 4/5.5 kw Y100L1-4 1440 R/M
Driving method: gear driving, efficiency bearing driving
Die rotation speed: 366r/m
Pellet diameter: 20-12mm( based on your choice)
Machine weight: 130kg ( after packing with wooden case)
Feature: with univeral driving part
Dia diameter:198mm
Capacity: 260-350kg/h
Motor: 3 phase 7.5kw Y1001-4 1440R/M
Driving method: efficiency gear box driving, bearing driving
Die rotation speed: 366r/m
Pellet diameter: 2-12mm
Machine weight: 200kg(after packing in wood case)
Dia diameter: 248mm
Machine capacity: 350-500kg/h
Motor: 3 phase 15kw Y100L1-4 970R/M
Driving method:efficiency gear driving, bearing driving
Die rotating speed: 246r/m
Pellet diameter: 2-12mm
Machine weight: 385kg( after packing in wooden case)
Dia diameter: 248mm
Machine capacity: 350-500kg/h
Motor: 3 phase 18kw Y100L1-4 970R/M
Driving method:efficiency gear driving, bearing driving
Die rotating speed: 246r/m
Pellet diameter: 2-12mm
Machine weight: 385kg( after packing in wooden case)
|
Applicable Industries: |
Farms |
After Warranty Service: |
Video technical support, No service, Online support, Spare par |
|
Local Service Locati: |
None |
Showroom Location: |
None |
|
Condition: |
New |
Place of Origin: |
Anyang, China |
|
Brand Name: |
AY |
Type: |
Feed Pellet Machine |
|
Voltage: |
380V 410V 110V 50hz |
Dimension(L*W*H): |
170*110*160cm |
|
Weight: |
1100 kg |
Certification: |
CE ISO |
|
Warranty: |
1 YEAR |
After-sales Service: |
Free spare parts, Field installation, commissioning and trainin |
|
Key Selling Points: |
Long Service Life |
Marketing Type: |
New Product 2020 |
|
Machinery Test Report: |
Provided |
Video outgoing-insp: |
Provided |
|
Warranty of core co: |
3 years |
Core Components: |
Bearing |
|
Application: |
Animal Feed |
Name: |
Ring die feed pellet machine |
|
Usage: |
Animal Poultry Livestock Feed Making Machine |
Material: |
Alloy Steel |
|
Quality: |
CE Assurance |
Raw material: |
Wheat Bran |
|
Function: |
Aniaml Feed Puffed Pellet Machine |
Product name: |
feed pellet machine |
|
Advantage: |
High Efficient |
Motor: |
Chinese Brand |
|
Supply Ability:35 Set/Sets per Month |
|||
